Cortex — Local Agent Studio

import { Tabs, TabItem, Aside, Card, CardGrid } from “@astrojs/starlight/components”;

Cortex is the official local-first companion studio for Reactive Agents. Fire it up alongside any agent run and get an instant GUI — live reasoning traces, entropy signal charts, token/cost vitals, debrief summaries, a full trace panel, and an interactive chat interface — all persisted to SQLite so you can replay any run at any time.

Quick Start

Start Cortex with one command, then connect any agent with one line:

```bash # Terminal 1 — install Cortex once, then launch the studio bun add @reactive-agents/cortex rax cortex # → API + UI on http://127.0.0.1:4321 (opens in your browser automatically)

Terminal 2 — run an agent that streams to Cortex

rax run “Research the top 5 TypeScript testing frameworks”
—provider anthropic
—reasoning
—tools
—cortex

  </TabItem>
  <TabItem label="From source repo (contributors)">
```bash
# Terminal 1 — clone and launch the dev stack (server + Vite UI)
git clone https://github.com/tylerjrbuell/reactive-agents-ts
cd reactive-agents-ts && bun install
bun cortex
# → API on http://localhost:4321
# → UI  on http://localhost:5173 (Vite dev mode — hot reload)

# Terminal 2 — same as above; rax stream events into the studio
rax run "Research X" --provider anthropic --cortex

Then connect any agent from code:

import { ReactiveAgents } from 'reactive-agents'

const agent = await ReactiveAgents.create()
    .withProvider('anthropic')
    .withReasoning()
    .withTools()
    .withCortex() // ← streams all events to http://localhost:4321
    .build()

await agent.run('Research AI agent frameworks')

When running rax cortex (npm) Cortex opens your browser at http://127.0.0.1:4321 automatically. From source-repo bun cortex, the Vite dev UI opens at http://localhost:5173 (hot-reload), with the API on :4321.

---

Views

Cortex has five views accessible from the top navigation bar:

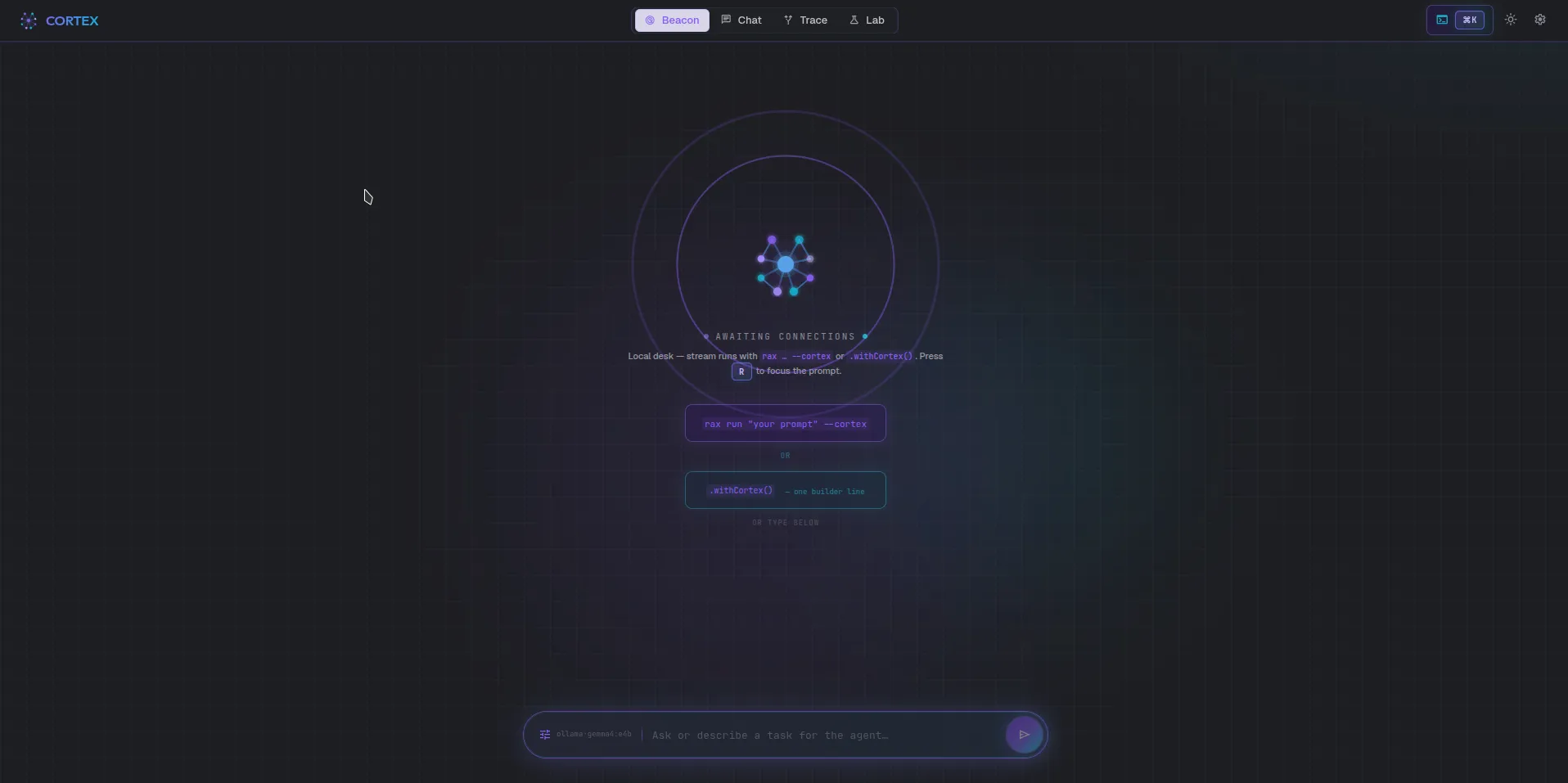

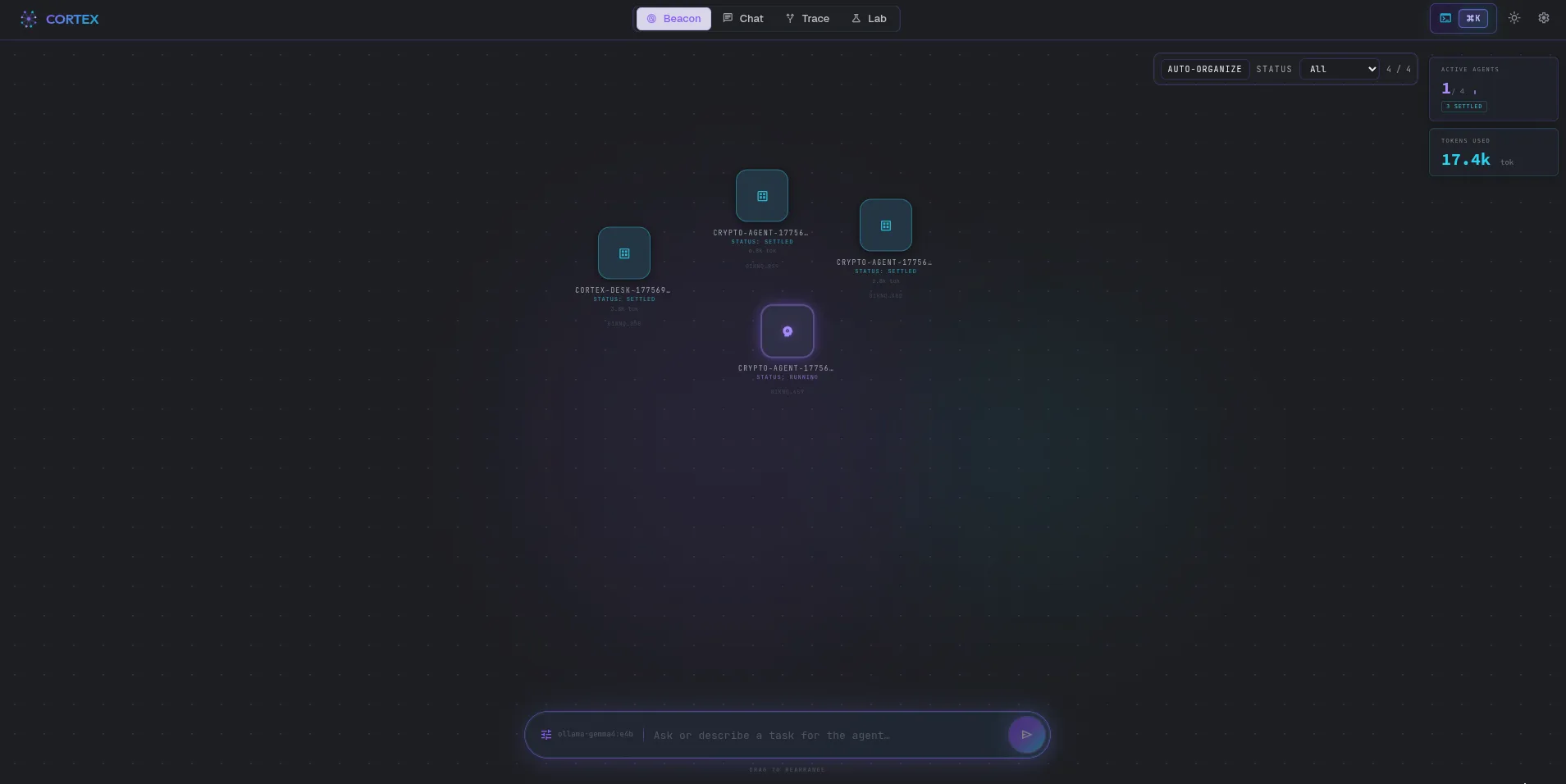

Beacon — Live Agent Grid

The Beacon view is your agent command center: a live grid that shows every connected agent’s cognitive state in real time, updated via WebSocket as events stream in.

Cognitive state labels map to entropy scores from the Reactive Intelligence layer:

State	Meaning
running	Agent is actively executing — standard entropy
exploring	Diverging entropy — agent is broadening its search
stressed	High entropy — agent may be stuck or looping
completed	Run finished successfully
error	Run ended with an unhandled error
idle	Agent is connected but not currently running

The filter bar (All, Running, Exploring, Stressed, …) lets you focus on agents of interest. The bottom input bar submits a new prompt via POST /api/runs and navigates directly to the new run on success.

---

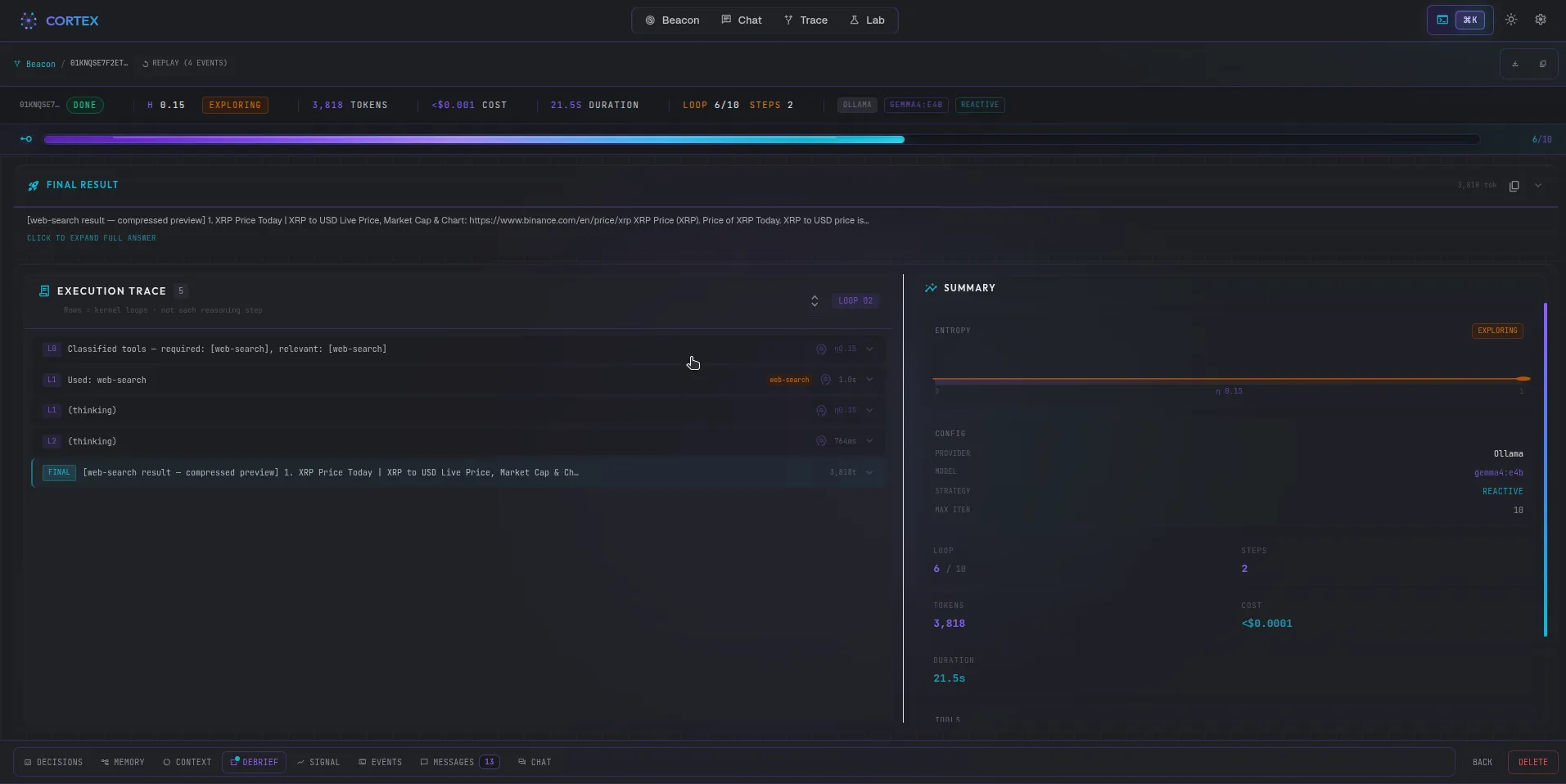

Run View — Deep Inspection

Navigate to any run from the Beacon grid or the Runs list. The Run View is the core diagnostic surface in Cortex: a multi-panel interface combining real-time streaming and persistent replay.

Vitals Strip

Always-visible run metadata: iteration count, total duration, tokens used, estimated cost, LLM provider, model, and reasoning strategy selected.

Entropy Signal Monitor

A D3-powered chart tracking the composite entropy score across all iterations. Entropy encodes reasoning quality — a converging trace (↘) indicates healthy progress toward an answer; a flat or diverging trace flags loops or confusion. The chart updates live while the run is in progress, and is fully replayable from history.

Trace Panel

Step-by-step breakdown of the agent’s reasoning loop, rendered as collapsible iteration frames:

• Thought — what the agent decided to do and why
• Action — the tool call issued (name + arguments)
• Observation — the tool result returned

Each frame is time-stamped and indexed so you can trace exactly which tool call led to which reasoning step, and how long each took.

Bottom Tabs

Tab	Content
Debrief	Structured post-run summary: task, plan, outcome, sources, confidence, and self-critique
Decisions	Controller decision log — each Reactive Intelligence intervention: early-stop, strategy-switch, context-compress, etc.
Memory	Memory entries read and written during this run (working, semantic, episodic, procedural)
Context	Full context window snapshot at each iteration
Raw Events	All persisted AgentEvent objects with timestamps — the ground truth log
Chat	Open a follow-up conversation with the same agent using this run as context

Cortex supports **replay**: close the run, reopen it later, and the Trace Panel and Signal Monitor re-populate from the SQLite event log. Live streaming resumes automatically if the agent is still running.

---

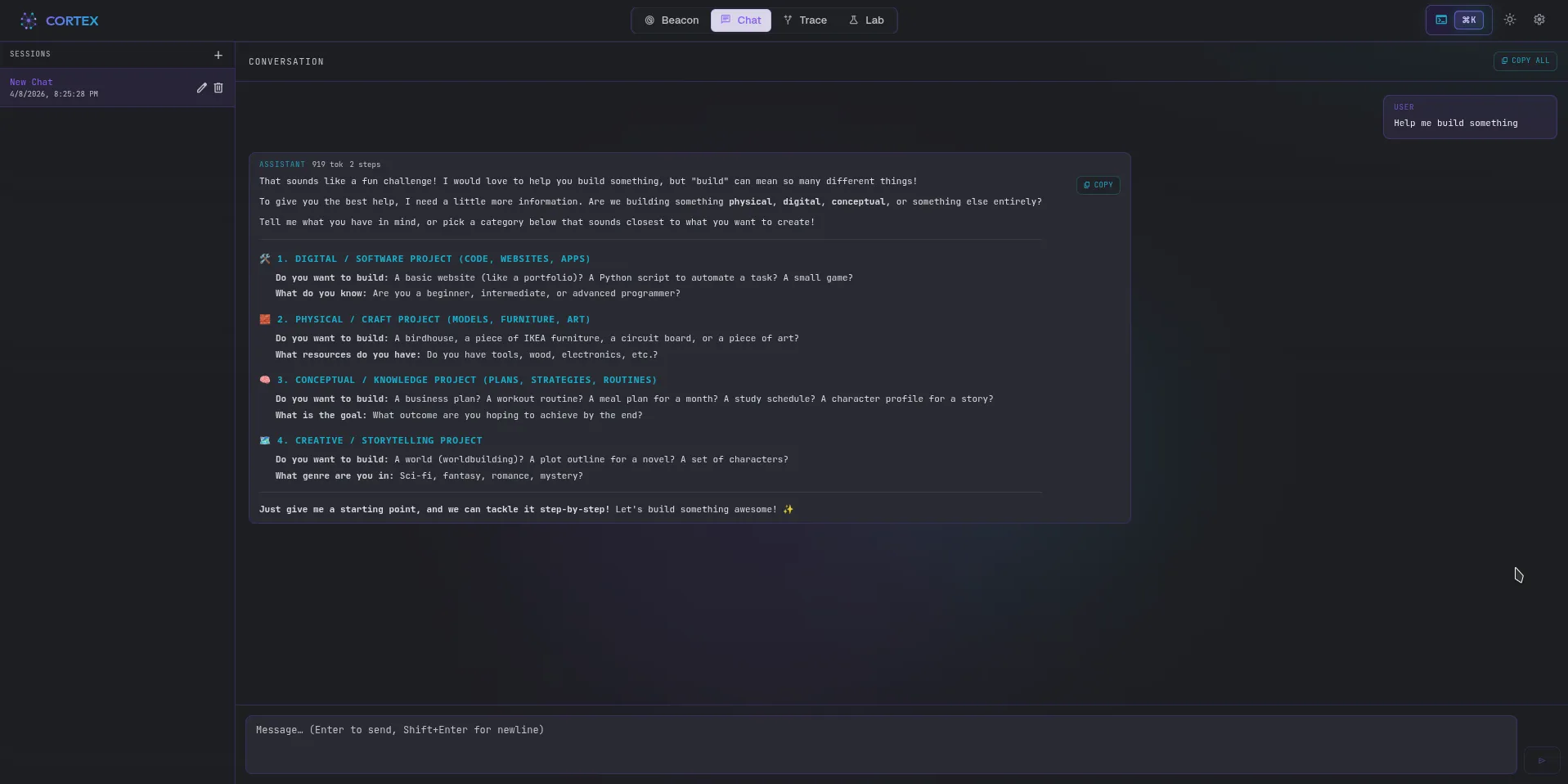

Chat — Interactive Sessions

The Chat view provides a conversational interface for multi-turn dialogue with any agent. Sessions are listed in the left panel; each session preserves the full conversation history.

Chat sessions are powered by @reactive-agents/svelte under the hood — the same createCortexAgentRun primitive that you can use in your own Svelte frontend.

---

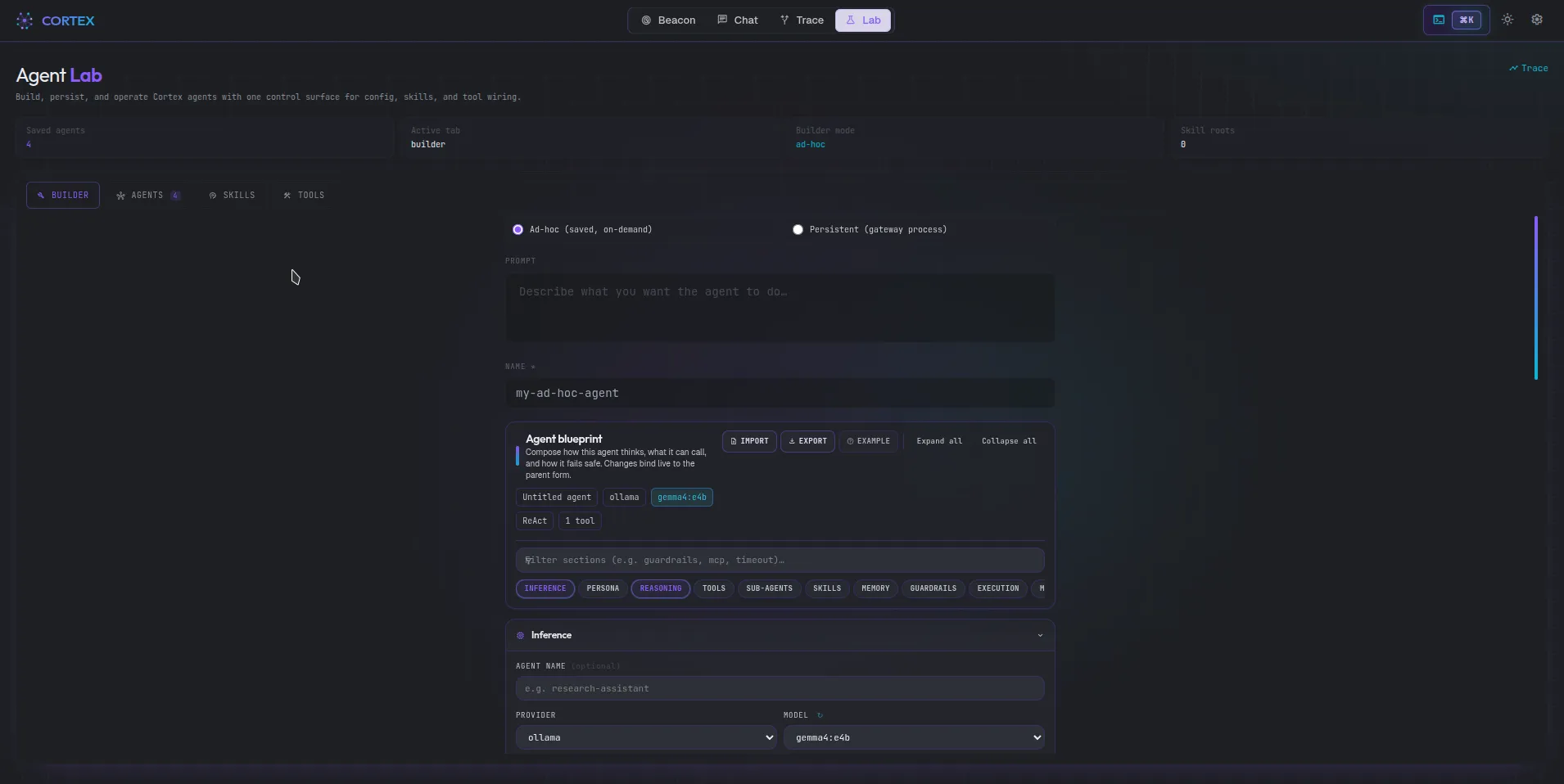

Lab — Builder, Skills, Tools, and Gateway

The Lab view is the workshop for configuring and launching agents directly from the Cortex UI without writing code:

Tab	Purpose
Builder	Visual agent configurator — choose provider, model, capabilities, and submit a prompt. Runs are immediately tracked in Beacon.
Gateway	Manage persistent gateway agents: list all saved agents, see their status, last run time, and schedule. Start/stop on demand.
Skills	Browse all SKILL.md files discovered in the workspace and stored in SQLite. View skill content, metadata, and evolution history.
Tools	Workshop for testing individual tools — invoke any registered tool with custom parameters and inspect the result.

---

Verification and host shell (Lab builder)

Cortex’s Lab Builder tab tracks the framework, but two options deserve a clear split:

Control	What it does
Verification step → Reflect	One extra LLM pass that reviews the draft answer (withVerificationStep({ mode: "reflect" })). Fast, no separate verification package.
Runtime verification layer	Enables @reactive-agents/verification (withVerification) — semantic entropy and related checks. Heavier than reflect; use when you want structured confidence signals.

Allowed tools are chosen in the Lab Builder Tools section: quick toggles for common builtins, MCP tools from your saved servers, plus an Additional allowed tools field for exact IDs (Lab custom tools, less common builtins). Optional additionalToolNames is merged with the toggle list at run time.

Host shell (shell-execute) is off by default. When you enable it in Tools, Cortex registers the framework terminal tool with default allowlist/blocklist on this machine — not an isolated Docker sandbox unless you build that in your own code. You can add extra allowed command names (e.g. node, gh) or, for advanced setups, replace the entire allowlist from the same Tools panel — both map to ShellExecuteConfig in the framework.

**Use host shell only at your own risk.** Allowlists limit which executables may run; blocklists catch many dangerous patterns, but this is still real command execution on your host. Prefer `code-execute` or a Docker sandbox from your application when exposing agents to untrusted prompts. See [Security hardening](/guides/security-hardening/) and the shell execution docs / consumer skill for configuration details.

---

Settings

Configure global Cortex defaults:

• Default provider and model — used as the pre-fill in the Lab Builder
• Ollama endpoint — custom local Ollama server URL
• UI theme — light / dark / system
• Notifications — enable / disable toast notifications
• Storage — view current SQLite path and database size

---

Connecting Your Agent

.withCortex() Builder Method

const agent = await ReactiveAgents.create()
    .withProvider('anthropic')
    .withModel('claude-sonnet-4-20250514')
    .withReasoning({ strategy: 'plan-execute' })
    .withTools()
    .withCortex() // ← connects to http://localhost:4321
    .withCortex('http://my-cortex:4321') // ← or explicit URL
    .build()

URL resolution priority:

1. Explicit URL passed to .withCortex(url)
2. CORTEX_URL environment variable
3. Default: http://localhost:4321

The connection is best-effort — if Cortex is not running or the WebSocket drops, the agent continues executing normally and logs a single warning. Cortex never blocks or slows down agent execution.

What Gets Streamed

Every AgentEvent emitted on the internal EventBus is forwarded to Cortex over WebSocket at /ws/ingest. This includes:

Event	What It Represents
AgentStarted	Run begins — registers the agent in Beacon
AgentCompleted / AgentFailed	Run ends — final status + cost
ReasoningStepCompleted	One thought/action/observation triplet
ToolCallCompleted	Individual tool result with success/failure
FinalAnswerProduced	The agent’s answer
LLMRequestCompleted	Token usage + cost per LLM call
DebriefCompleted	Post-run structured summary
EntropyScored	Reactive Intelligence entropy measurement
ControllerDecision	Reactive Intelligence intervention (early-stop, etc.)
ChatTurn	Chat session message
MemoryRead / MemoryWrite	Memory layer activity
ProviderFallbackActivated	Provider fallback triggered

Environment Variables

Variable	Default	Purpose
CORTEX_PORT	4321	Cortex server listen port
CORTEX_URL	http://localhost:4321	Base URL used by .withCortex() if not passed explicitly
CORTEX_NO_OPEN	unset	Set to 1 to prevent opening a browser on server start
CORTEX_LOG	info	Server log verbosity: error | warn | info | debug
CORTEX_SKILL_SCAN_ROOT	—	Extra root path to scan for SKILL.md files in Lab/Skills

---

rax CLI Integration

Note: Cortex is a contributor tool, not a public CLI command. Launch it from a repo clone via bun cortex (or cd apps/cortex && bun start). The rax run --cortex flag still works in the published CLI — it streams events to whatever Cortex instance you have running locally.

```bash # Start studio with hot-reloading UI (contributor tool) bun cortex

Custom port (set CORTEX_PORT)

CORTEX_PORT=4444 bun cortex

Suppress browser auto-open

CORTEX_NO_OPEN=1 bun cortex

  </TabItem>
  <TabItem label="Run with Cortex">
```bash
# Connect a one-off run to Cortex
rax run "Summarize the top AI news" \
  --provider anthropic \
  --reasoning \
  --tools \
  --cortex

# Custom Cortex URL
CORTEX_URL=http://cortex.internal:4321 \
  rax run "Task" --cortex --provider anthropic

# Stream output to terminal AND trace in Cortex simultaneously
rax run "Write tests for my auth module" \
  --provider anthropic \
  --reasoning \
  --tools \
  --stream \
  --cortex

---

Architecture

Cortex is a standalone application that runs alongside your agent process. It has no dependencies on the agent’s runtime — communication is purely over WebSocket.

Your Agent Process                   Cortex Server (port 4321)
─────────────────────                ────────────────────────────
ReactiveAgentBuilder                 server/index.ts
  .withCortex()                        ├── /ws/ingest   ← receives events
      │                                │     └── CortexIngestService
      │  WebSocket (best-effort)        │           └── persists to SQLite
      └────────────────────────────────►│     └── EventBridge.broadcast()
                                       │                │
                                       ├── /ws/live/:agentId  ← fans out to UI
                                       │         ▲
                                       │         └── Browser (SvelteKit UI)
                                       │                http://localhost:5173  ← dev server URL
                                       └── /api/runs   ← REST history

Server stack: Bun + Elysia + bun:sqlite
UI stack: SvelteKit 2, Svelte 5 (runes), Tailwind CSS, D3 for signal charts
Persistence: SQLite at .cortex/cortex.db relative to the server process cwd

The live WebSocket at /ws/live/:agentId supports replay: on connection, the server immediately replays all persisted events for the requested runId, so the UI refreshes correctly even after a page reload.

---

Integration with Web Framework Hooks

Because Cortex dogfoods @reactive-agents/svelte, you can use the same primitives in your own Svelte app:

import { createCortexAgentRun } from '@reactive-agents/svelte'

const agentRun = createCortexAgentRun({
    cortexUrl: 'http://localhost:4321',
    agentId: 'my-agent',
})

// Reactive Svelte store: $agentRun.status, $agentRun.output, $agentRun.iterations

The same pattern is available for React (@reactive-agents/react) and Vue (@reactive-agents/vue).

---

Production Use

Cortex is designed for local development and internal tooling. For production deployments:

• Run bun run build:ui inside apps/cortex to build the static SvelteKit bundle into ui/build
• The Cortex server serves the static bundle when CORTEX_STATIC_PATH points to ui/build
• Secure the WebSocket endpoints and REST API behind your internal network — Cortex has no authentication by default

# Build the UI for self-hosted deployment
cd apps/cortex
bun run build:ui
bun run dev:server
# → Serves static UI + API on http://localhost:4321

---
